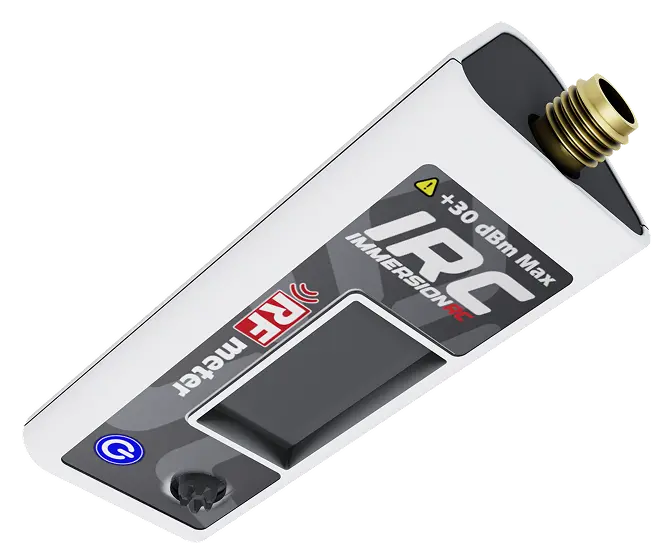

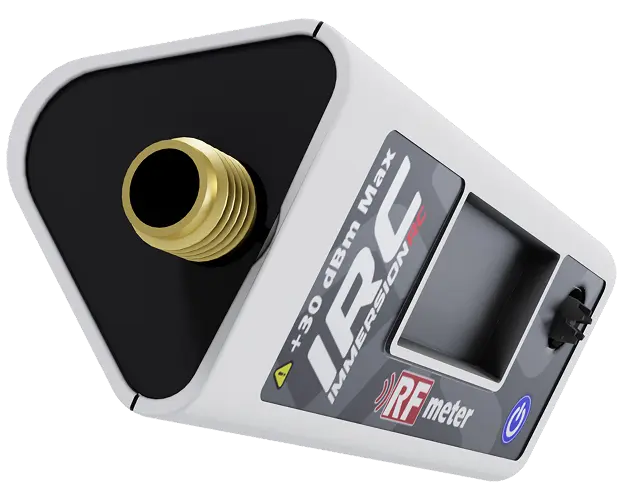

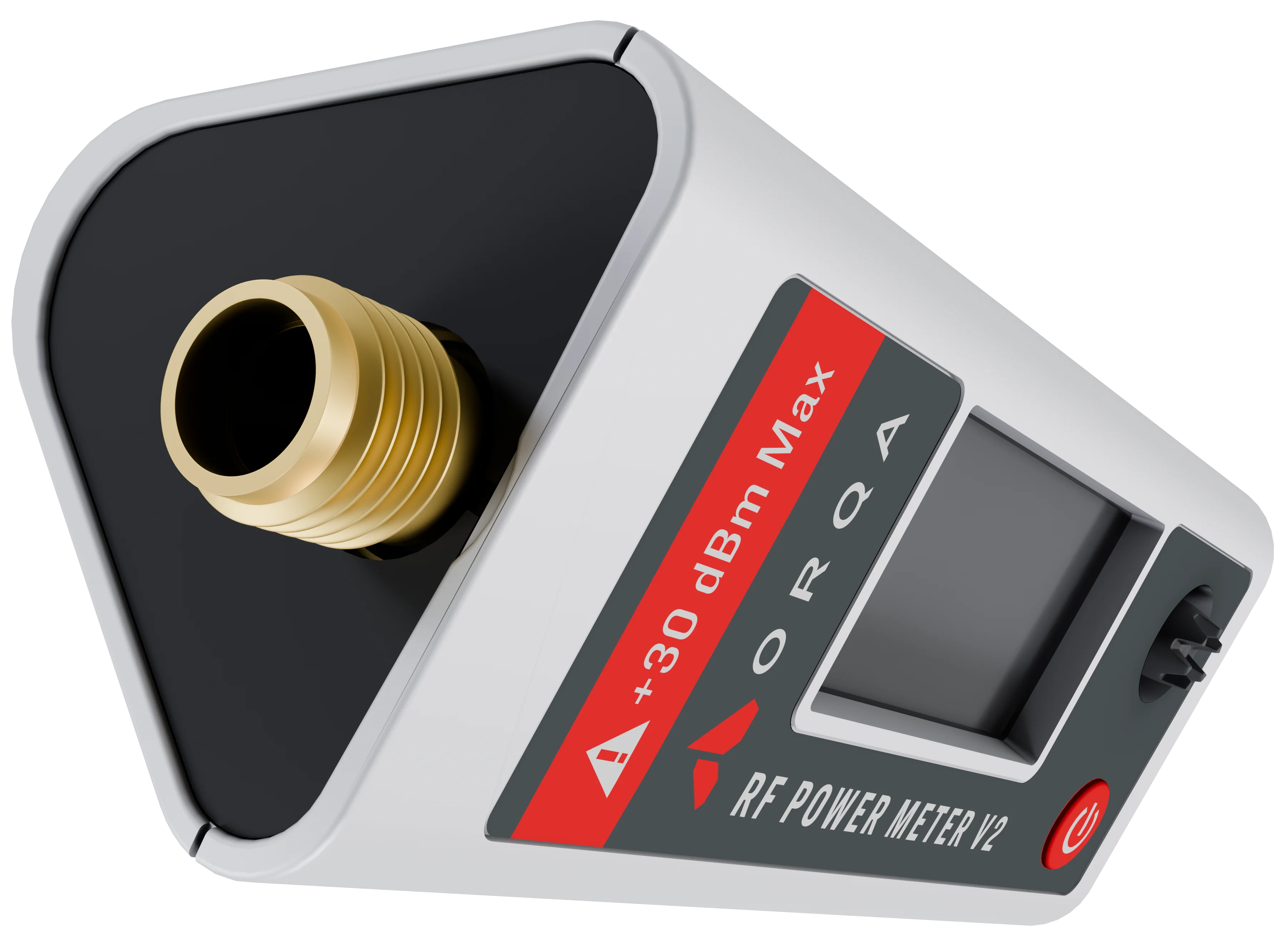

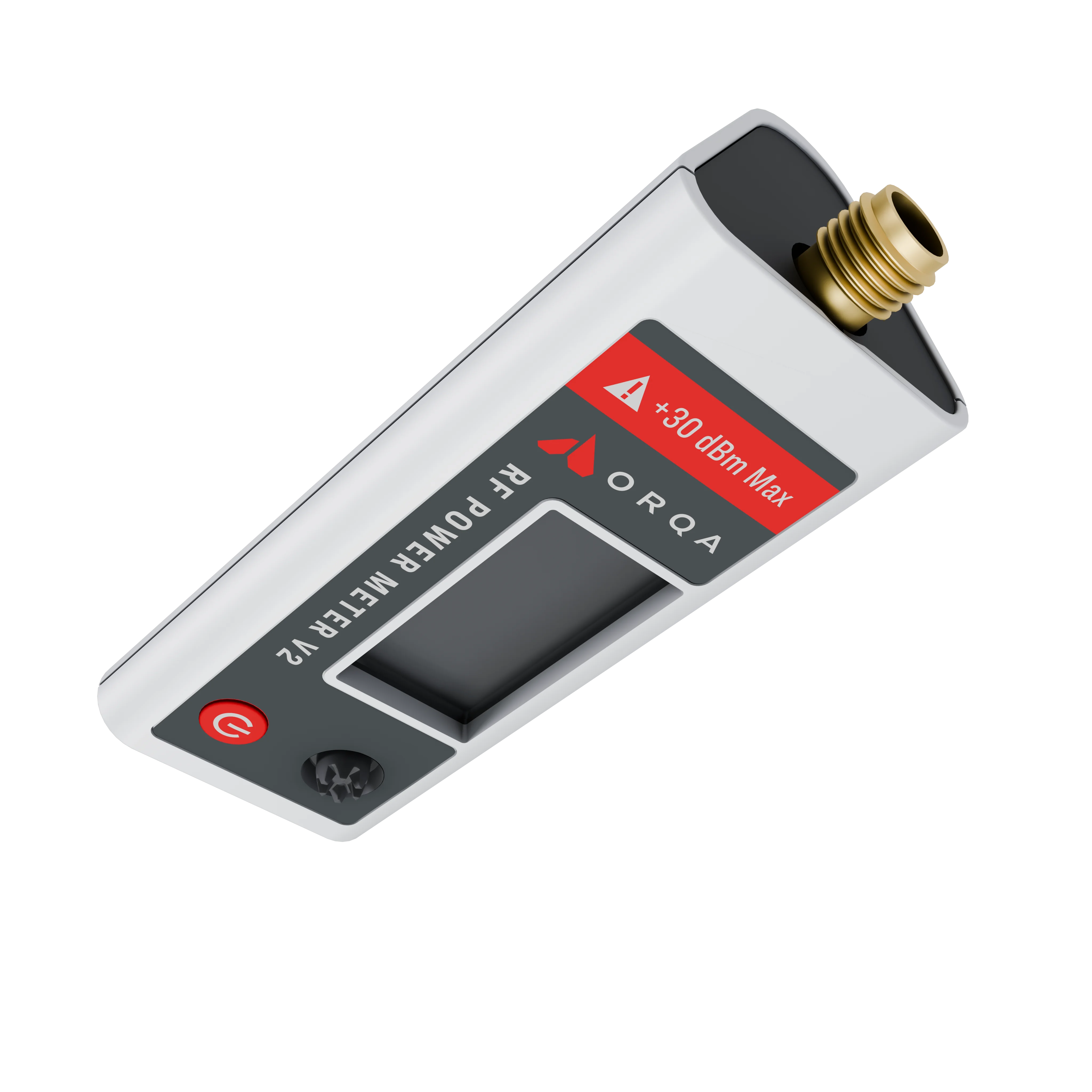

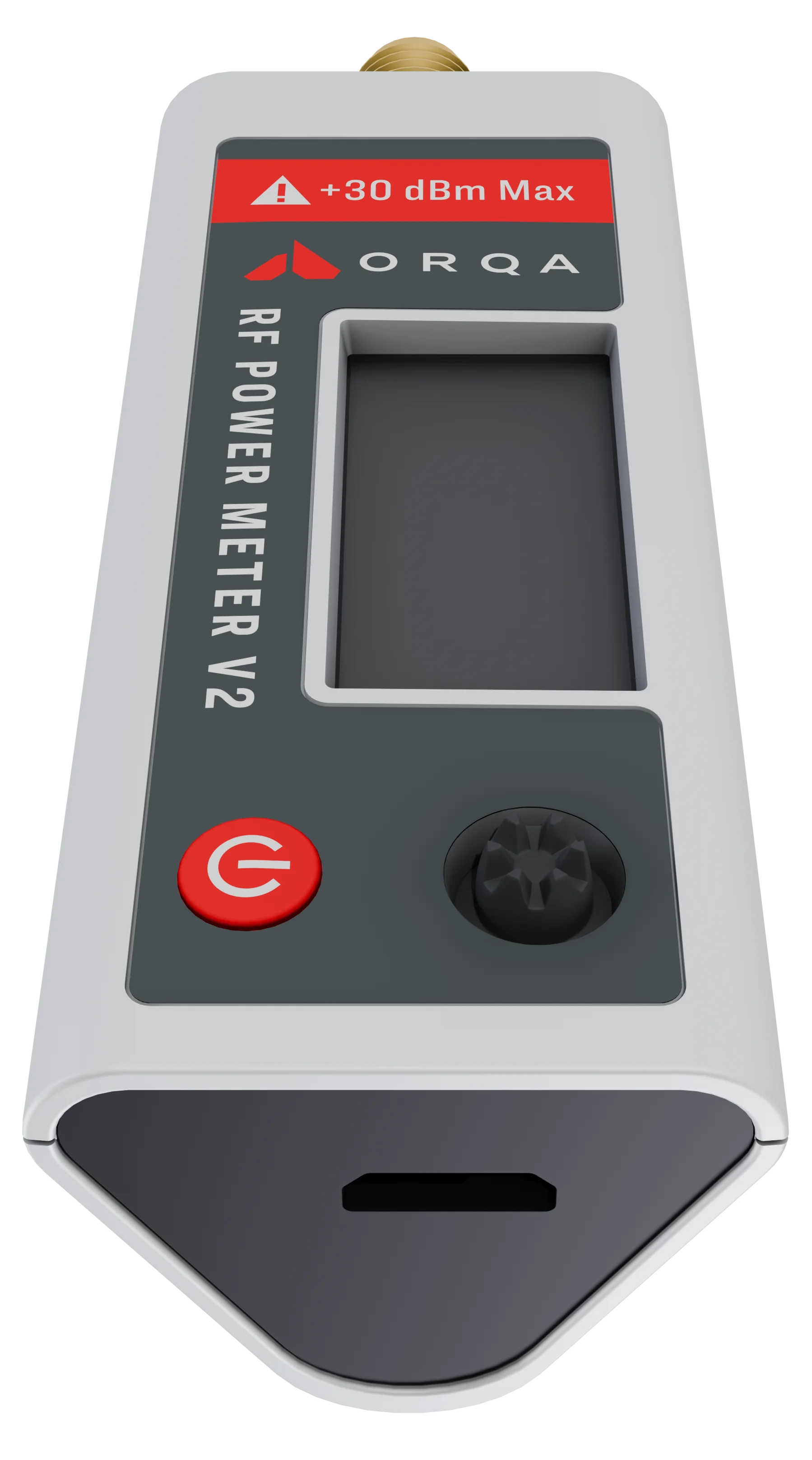

ImmersionRC RF Power Meter v2

Essential
FPV Tool

The Power Meter v2 ensures precise RF control and video link performance, now upgraded with an internal battery, attenuator, and key enhancements over the original.

buy now

Background Image with Red Effect for Landing Section

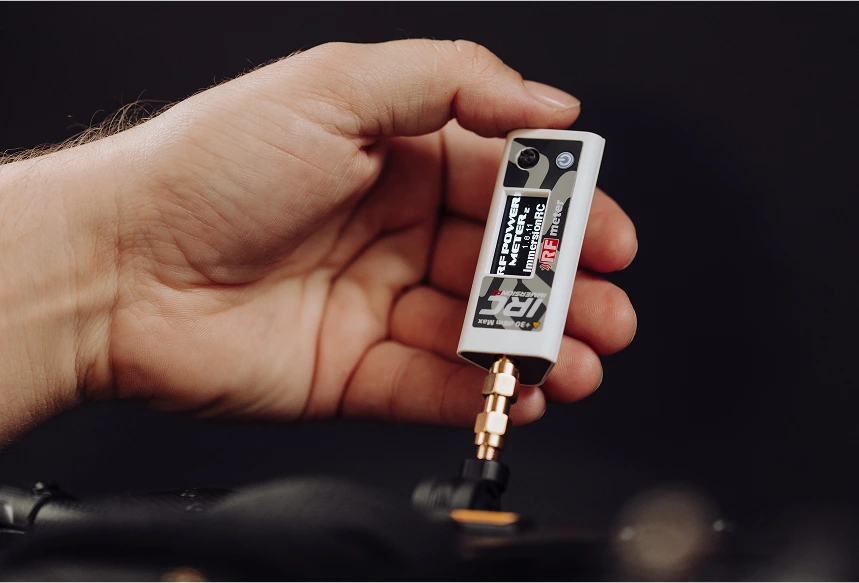

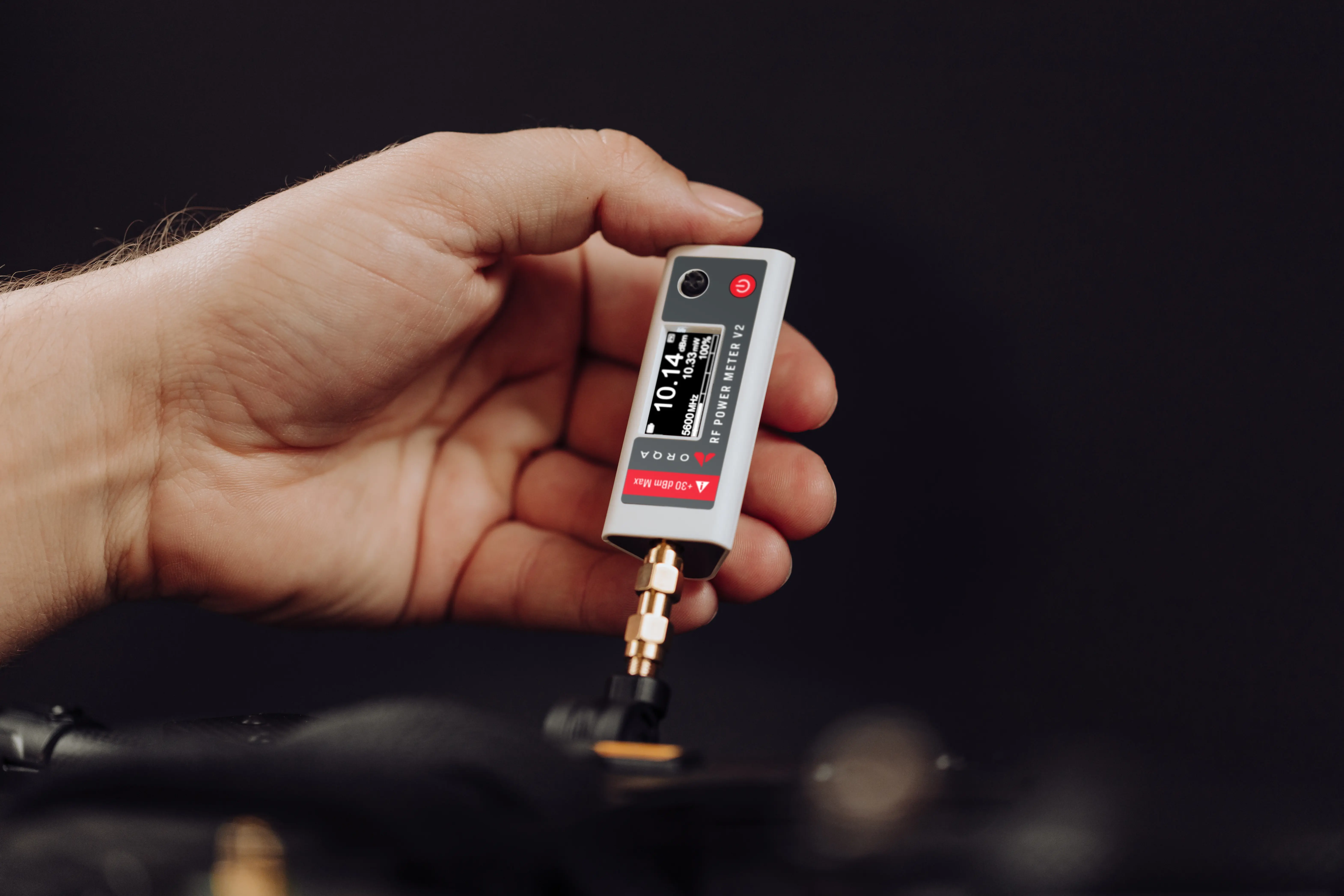

Touch-Free Testing

Use the included stubby dipole to wirelessly test quads - no antenna removal needed. Spot violators or faulty gear easily, keeping races fair and safe.

Built-in Battery

Get over 8 hours per charge. Auto-shutdown conserves power, and fast USB charging gets you back in under an hour.

PowerScope Mode

Visualize RF signals, monitor packet timing, and check antennas. Detects LBT & Duty Cycle limits for deeper analysis and full compliance insight.

Signal Flexibility

Supports continuous analog VTX signals and pulsed digital RC controller signals for full testing versatility.

Accurate Measurements

Ensure your VTX outputs a true 25mW and stays consistent throughout the race. Supports the global 25mW standard to guarantee compliance and prevent issues.

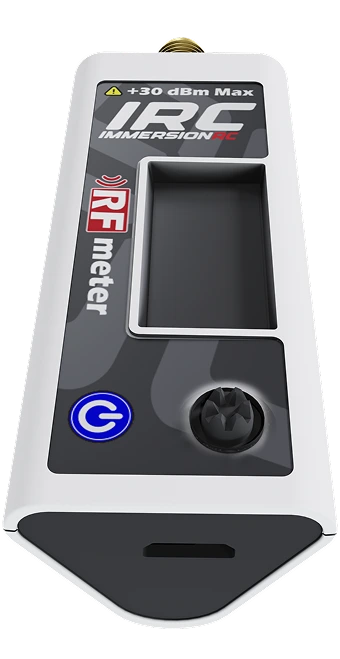

Calibrated Frequencies

35, 72, 433, 868, 915, 1200, 2400, 5600-6000 MHz in 50MHz steps

Attenuator

30dB (Internal)

Current Consumption

~35mA

Auto Shutdown

5-minute timeout

Power Level

-20dBm up to +30dBm

Accuracy

+/- 0.5dB

Battery

3.7V Lithium Ion cell, 10440 size, 600mAh

Battery Life

~8 hours
