High performance, secure and affordable

NDAA Compliant components for FPV quadcopters

UNCOMPROMISING RELIABILITY

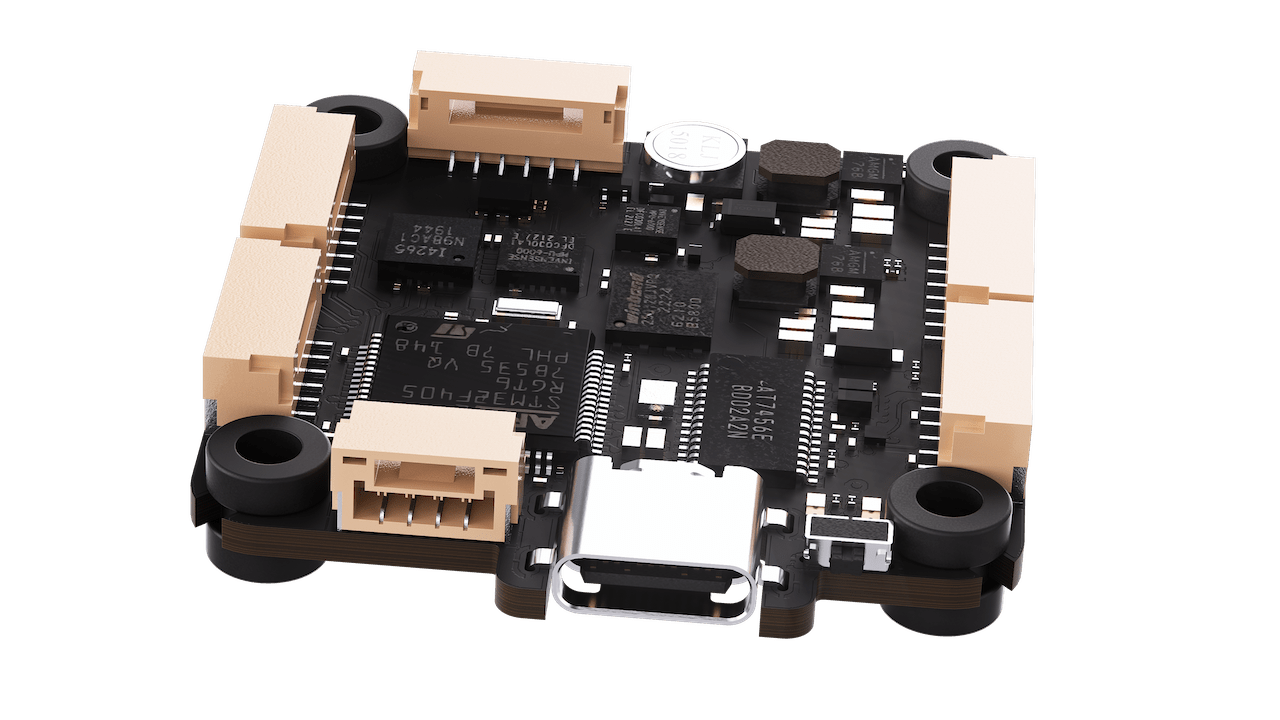

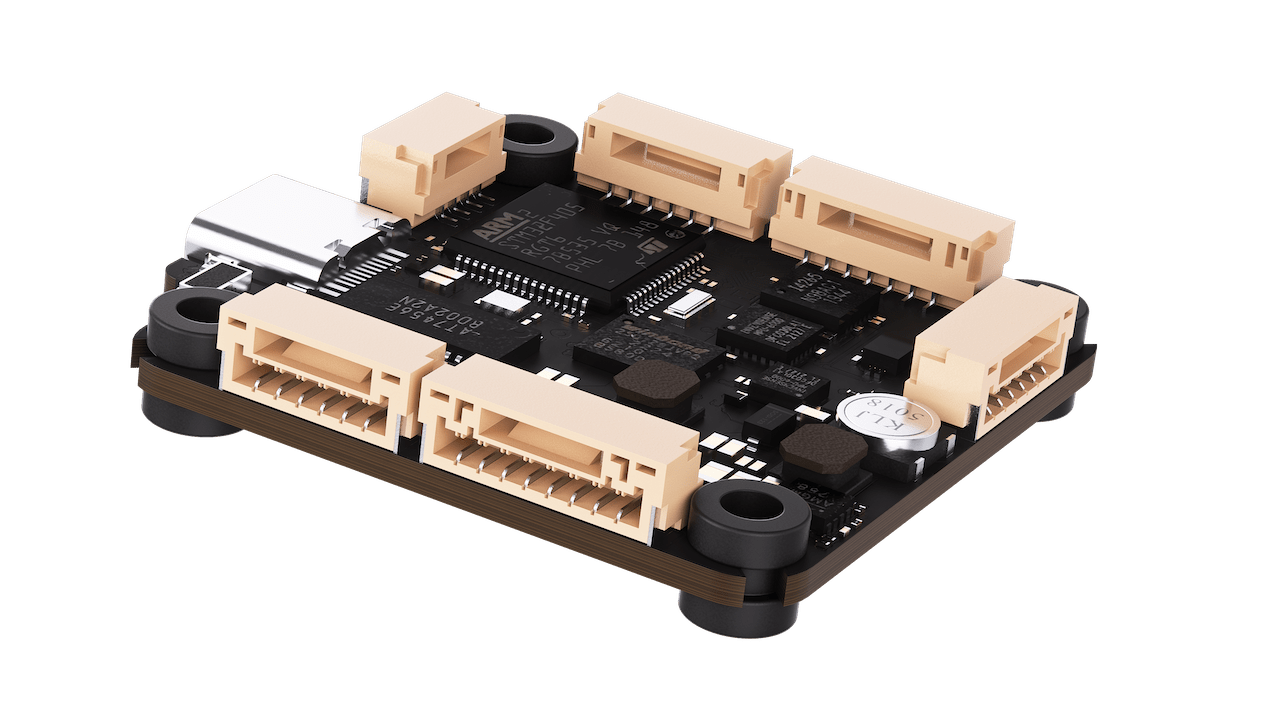

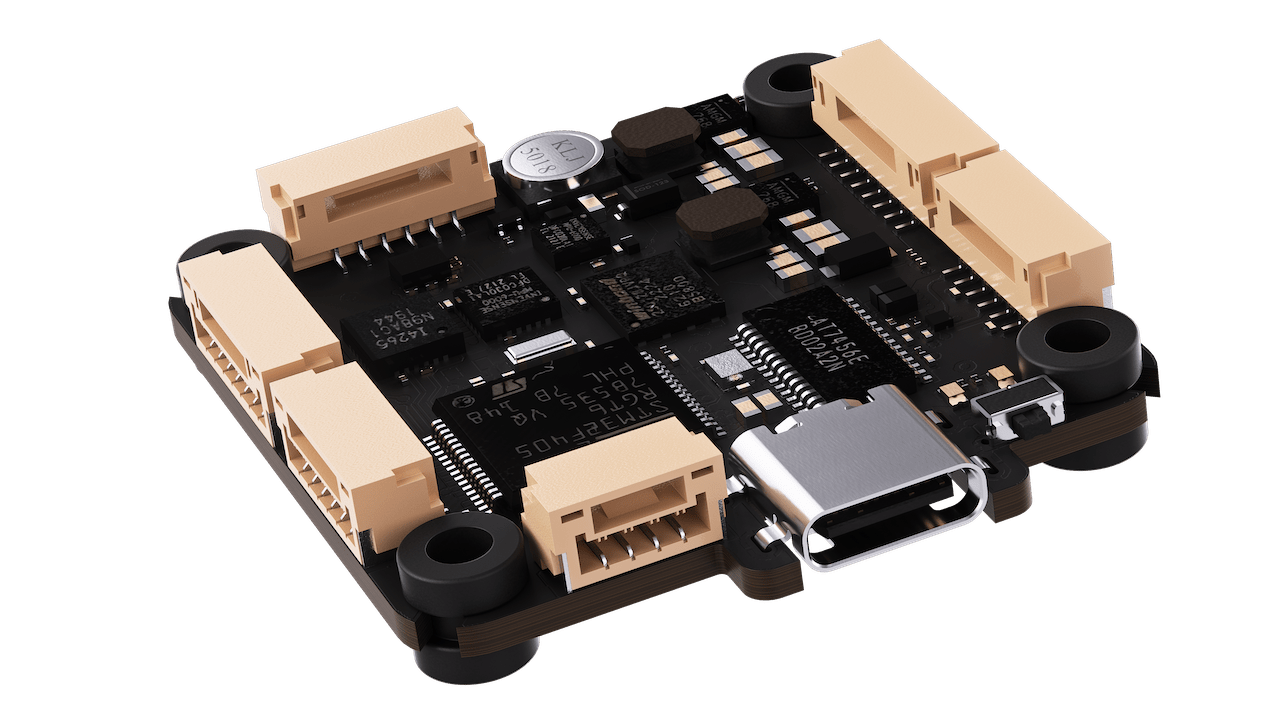

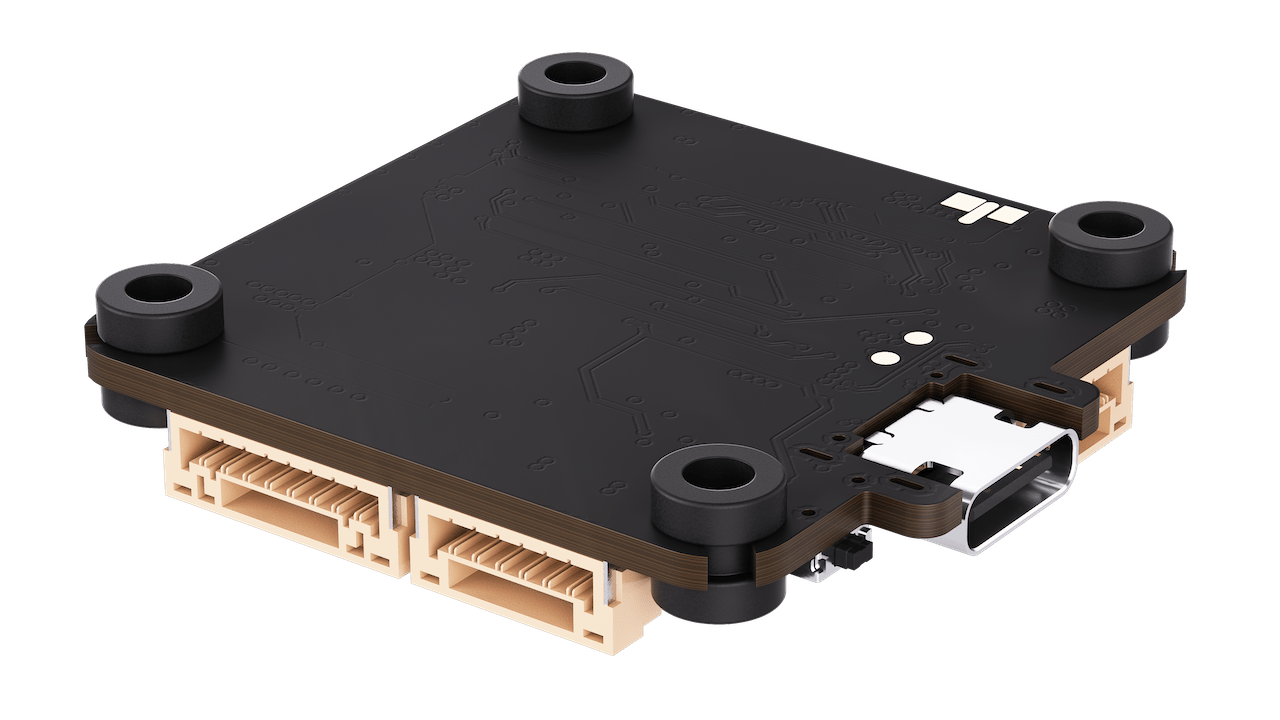

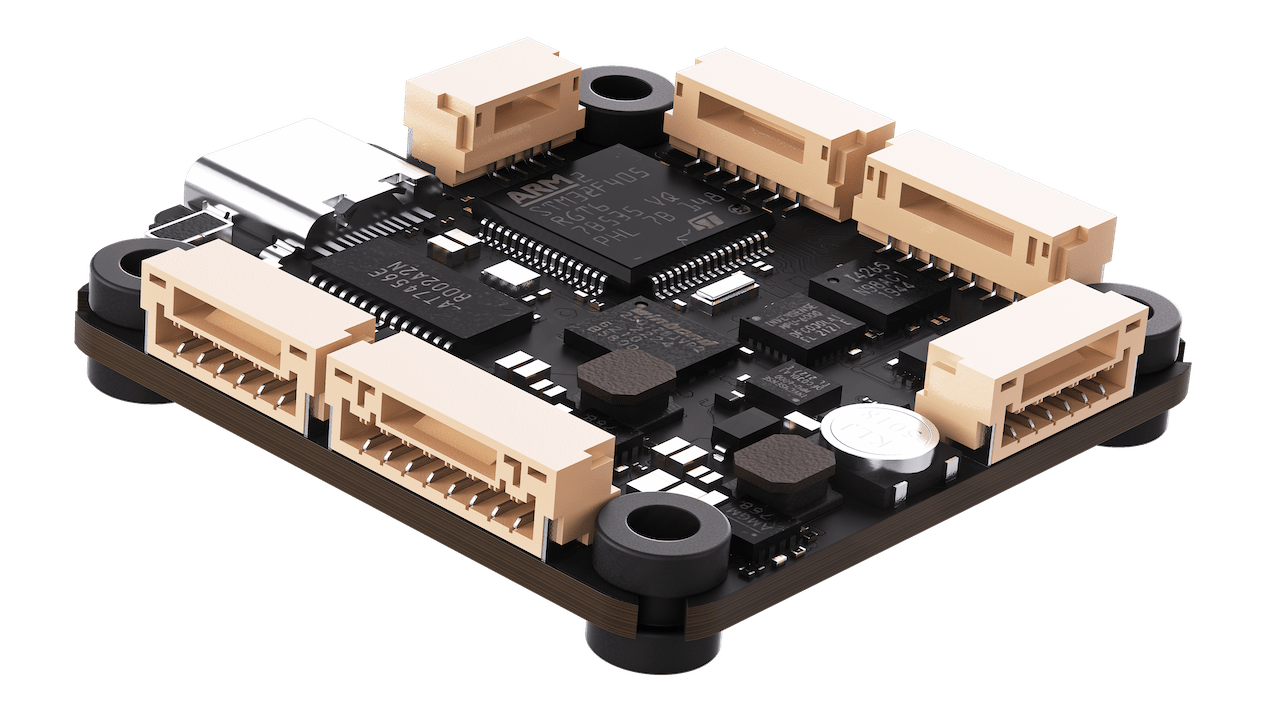

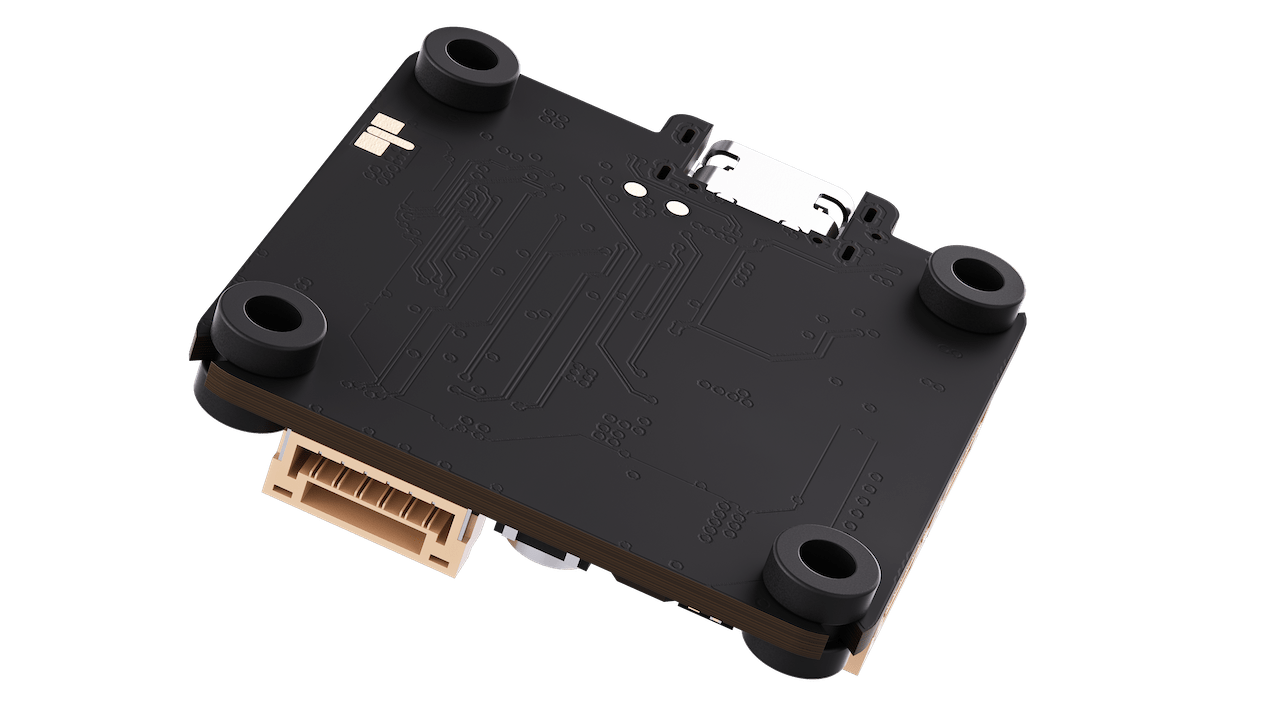

f405 3030 fc

Eliminate a key point of failure - Orqa’s flight controller uses secure, lockable JST-GH connectors instead of solder pads for a fast, clean build. Designed and manufactured in the EU, it’s the reliable core for missions that can’t afford to fail.

buy now

get more info

Processor

STM32F405

FIRMWARE

Betaflight & iNav support

IMU

ICM-42688

LAYOUT

30x30mm single-sided

CONNECTORS

Locking JST-GH, USB-C

POWER

Twin 2A switching regulators (5V and 10V)

MEMORY

16MByte serial flash

MOTOR OUTPUTS

4 or 8

VIDEO

Two camera inputs (switchable via R/C), Standard OSD

SENSORS

Onboard barometric altimeter & beeper

INTERFACES

SIK radio, GPS/Magnetometer, Payload connector with GHST passthrough

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

Processor

STM32F405

FIRMWARE

Betaflight & iNav support

IMU

ICM-42688

LAYOUT

30x30mm single-sided

CONNECTORS

Locking JST-GH, USB-C

POWER

Twin 2A switching regulators (5V and 10V)

MEMORY

16MByte serial flash

MOTOR OUTPUTS

4 or 8

VIDEO

Two camera inputs (switchable via R/C), Standard OSD

SENSORS

Onboard barometric altimeter & beeper

INTERFACES

SIK radio, GPS/Magnetometer, Payload connector with GHST passthrough

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

Processor

STM32F405

FIRMWARE

Betaflight & iNav support

IMU

ICM-42688

LAYOUT

30x30mm single-sided

CONNECTORS

Locking JST-GH, USB-C

POWER

Twin 2A switching regulators (5V and 10V)

MEMORY

16MByte serial flash

MOTOR OUTPUTS

4 or 8

VIDEO

Two camera inputs (switchable via R/C), Standard OSD

SENSORS

Onboard barometric altimeter & beeper

INTERFACES

SIK radio, GPS/Magnetometer, Payload connector with GHST passthrough

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

FLAWLESS POWER DELIVERY

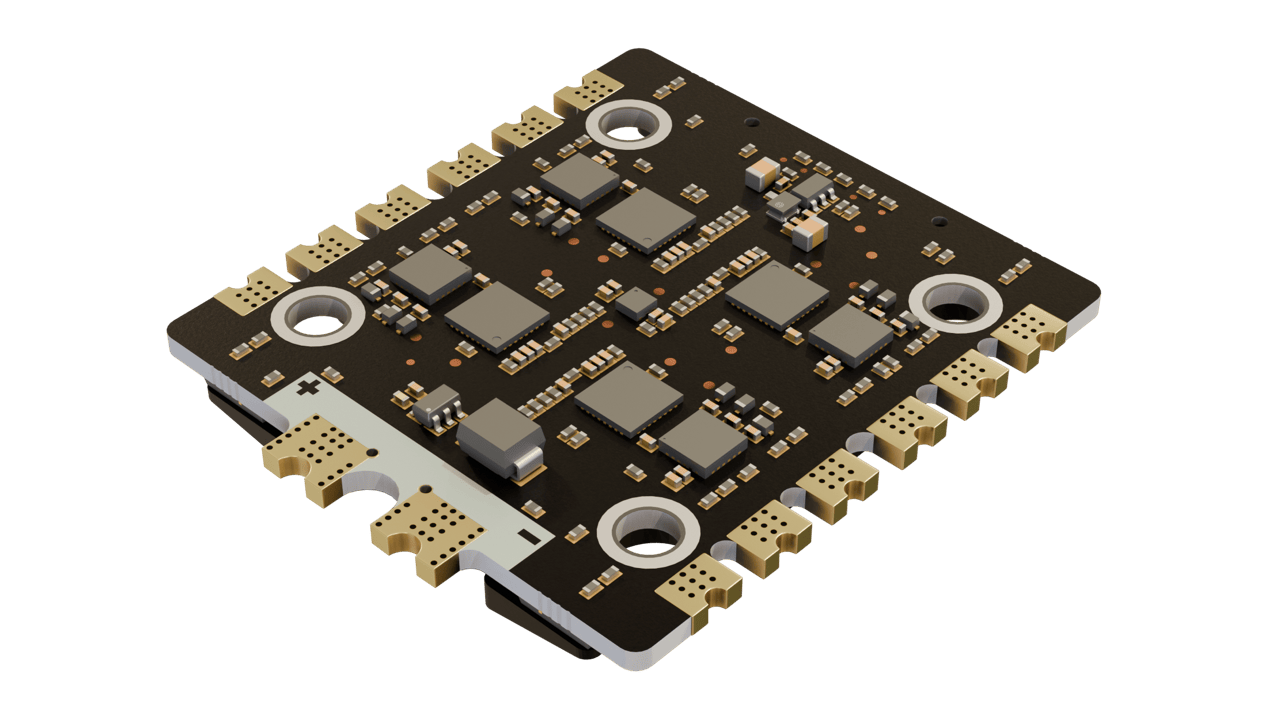

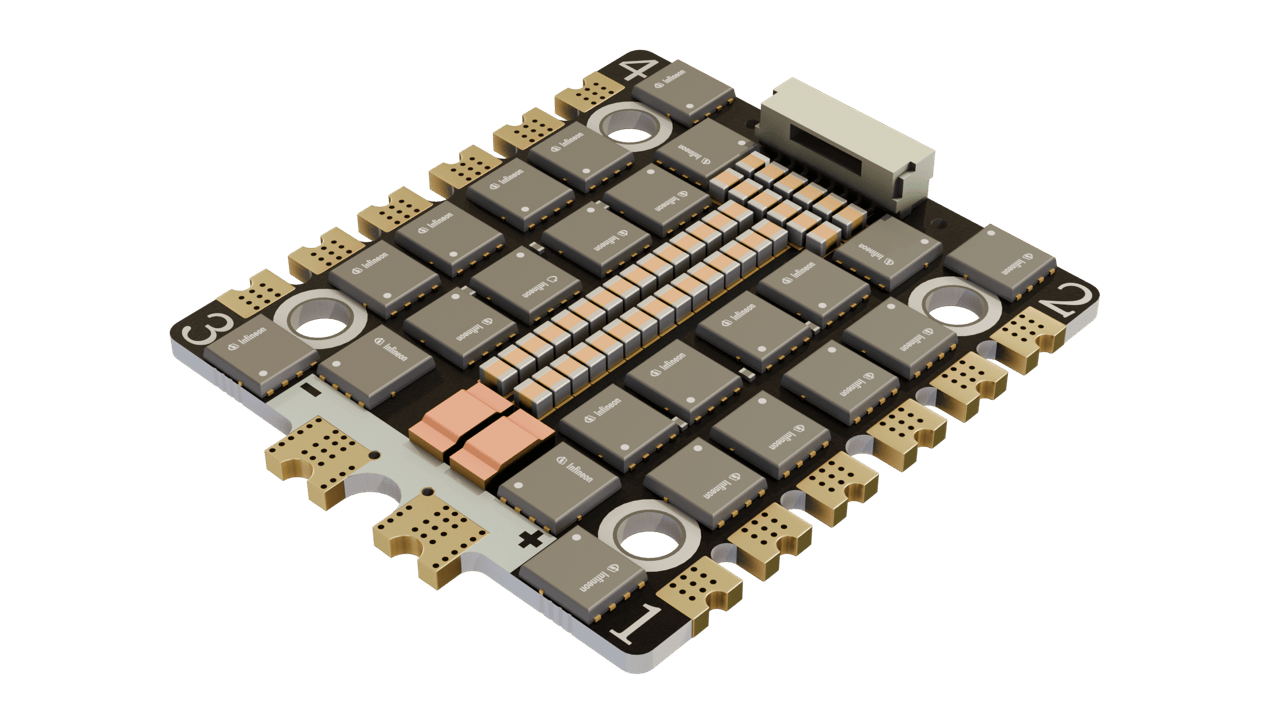

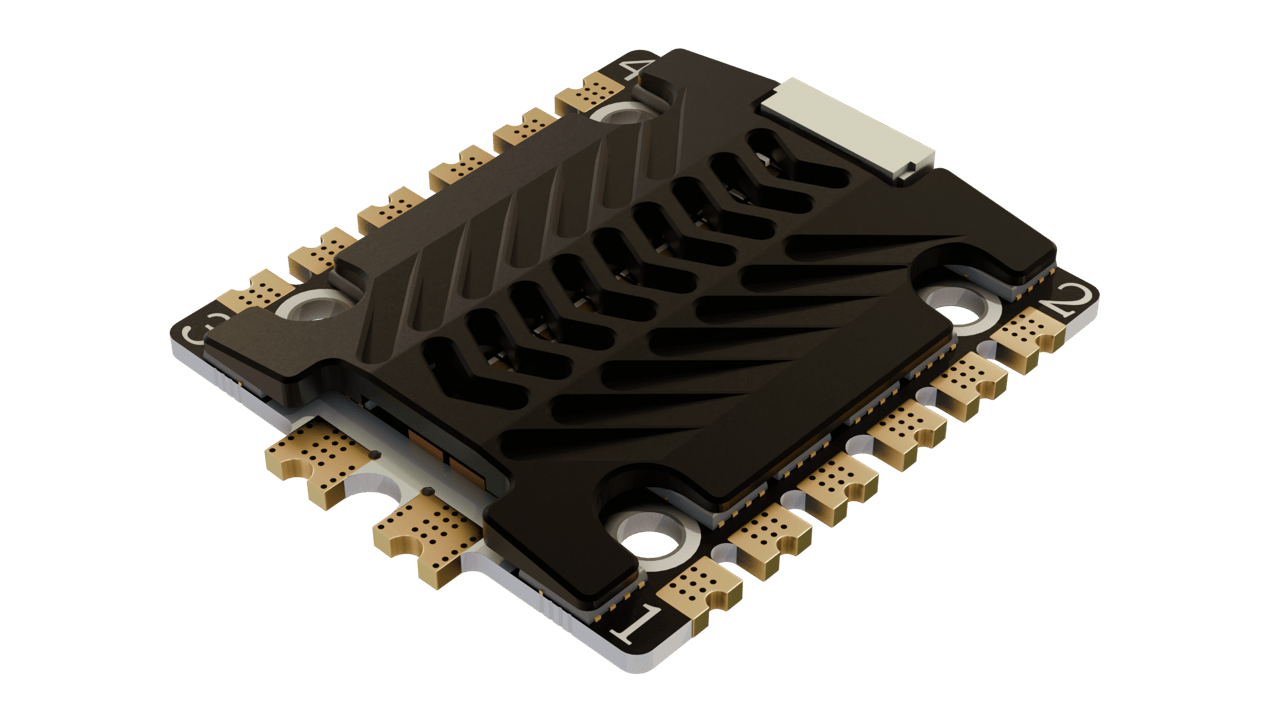

4IN1 3030 ESC

Handle extreme loads with confidence. This 70A 4-in-1 ESC delivers smooth, reliable power for the most demanding motors. Designed and manufactured in the EU, it includes a direct-connect cable for the Orqa F405 FC for a perfect plug-and-play stack.

buy now

get more info

TYPE

4-in-1 Brushless ESC

CURRENT RATING

70A Continuous (80A Burst for 10s)

VOLTAGE

3S-6S LiPo Support

FIRMWARE

AM32

PROTOCOLS

DShot 300/600/1200, Bi-directional DShot

MOUNTING

30x30mm

WEIGHT

~28g

INCLUDED

FC Connection Cable, 4x Shock-absorbing Silicone Grommets

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

TYPE

4-in-1 Brushless ESC

CURRENT RATING

70A Continuous (80A Burst for 10s)

VOLTAGE

3S-6S LiPo Support

FIRMWARE

AM32

PROTOCOLS

DShot 300/600/1200, Bi-directional DShot

MOUNTING

30x30mm

WEIGHT

~28g

INCLUDED

FC Connection Cable, 4x Shock-absorbing Silicone Grommets

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

TYPE

4-in-1 Brushless ESC

CURRENT RATING

70A Continuous (80A Burst for 10s)

VOLTAGE

3S-6S LiPo Support

FIRMWARE

AM32

PROTOCOLS

DShot 300/600/1200, Bi-directional DShot

MOUNTING

30x30mm

WEIGHT

~28g

INCLUDED

FC Connection Cable, 4x Shock-absorbing Silicone Grommets

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

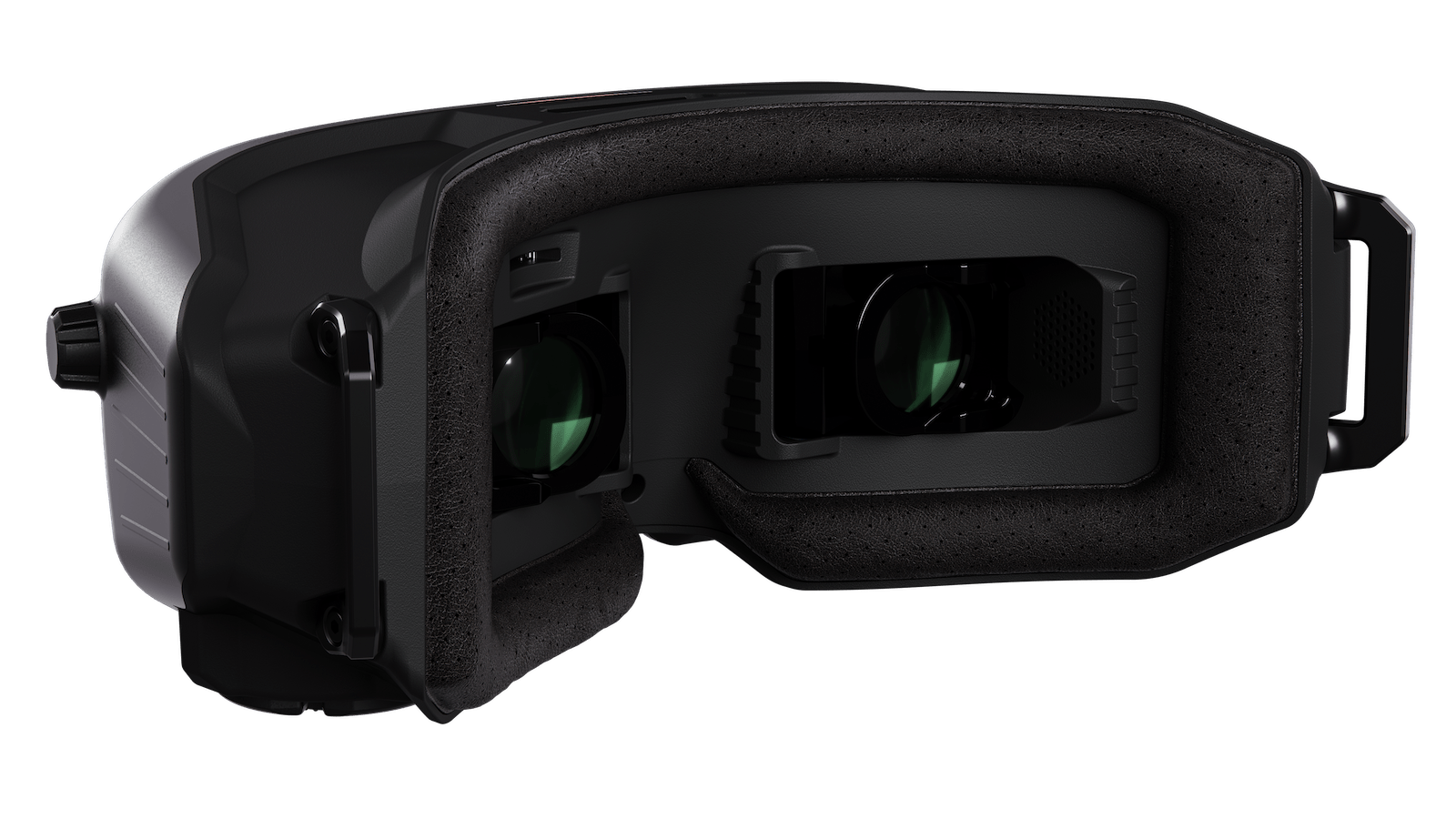

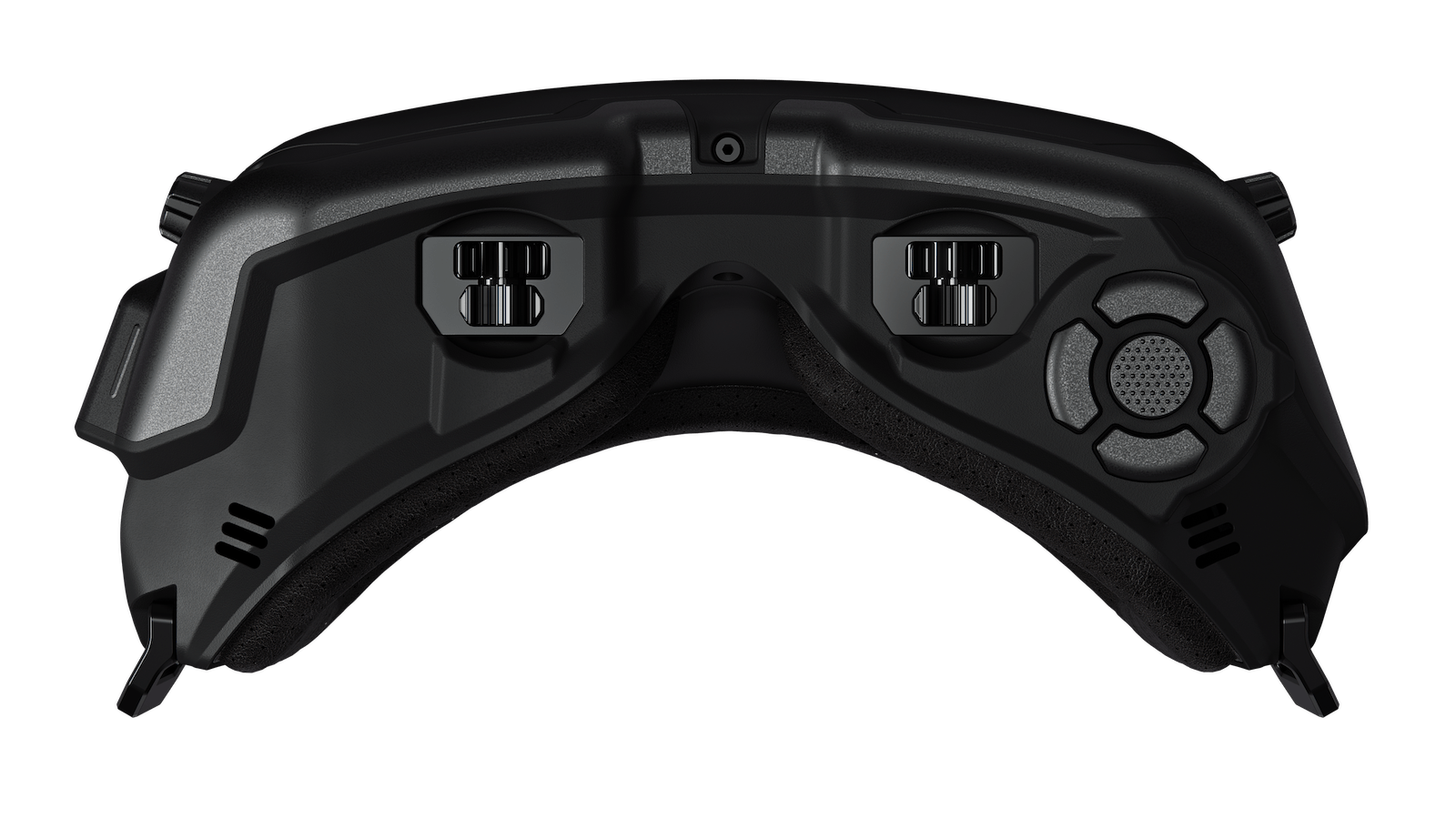

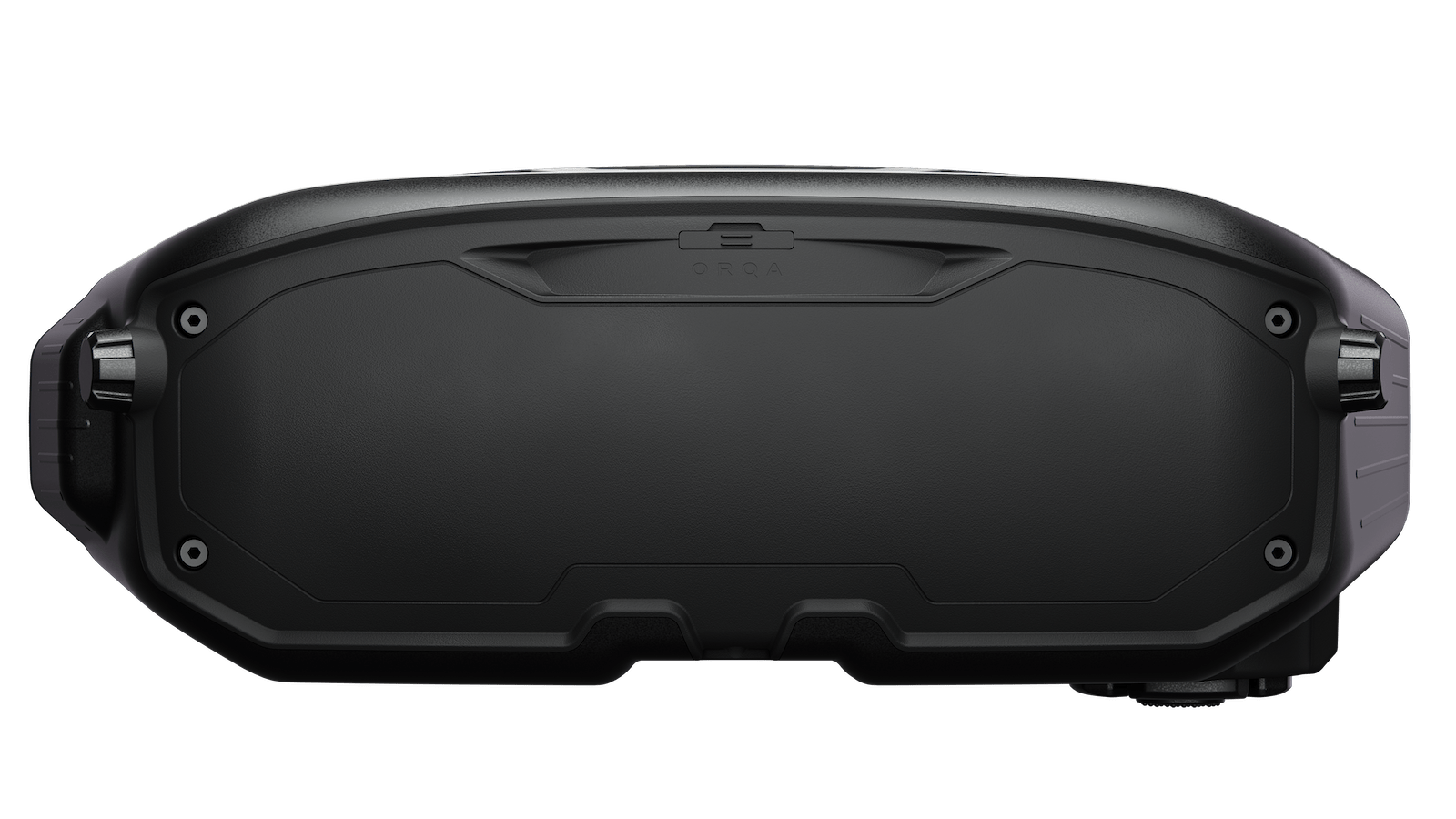

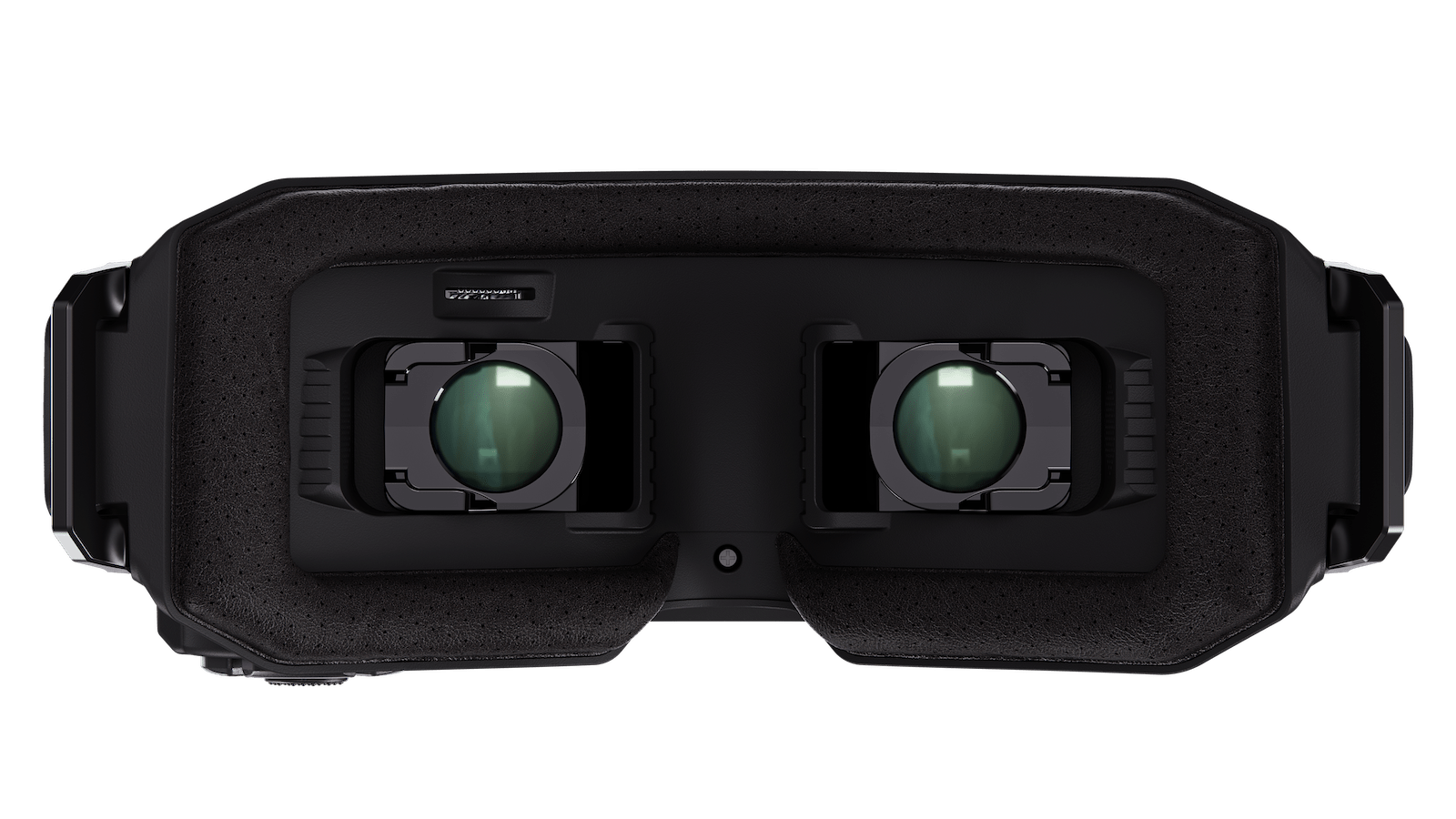

MISSION-CRITICAL CLARITY

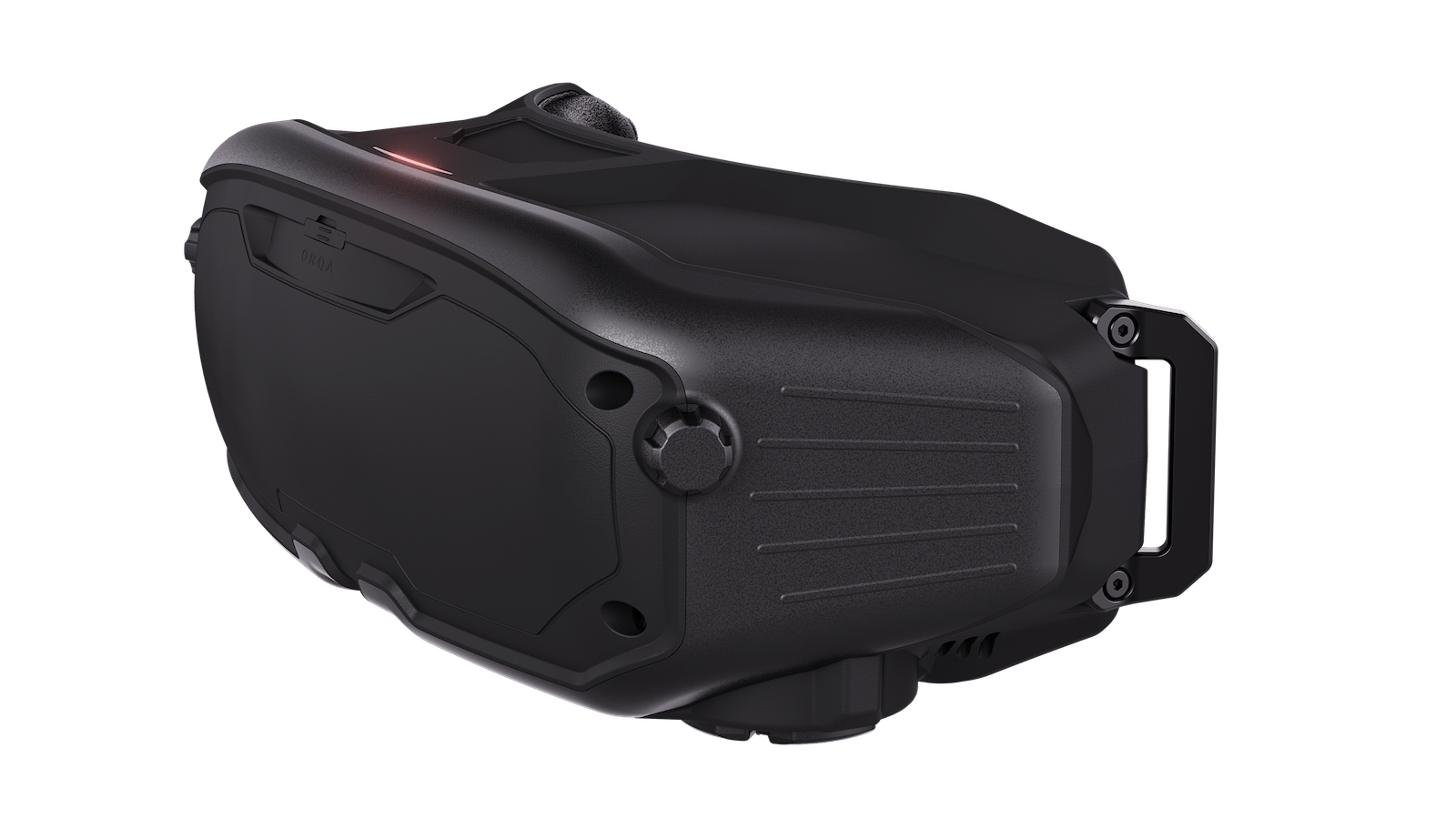

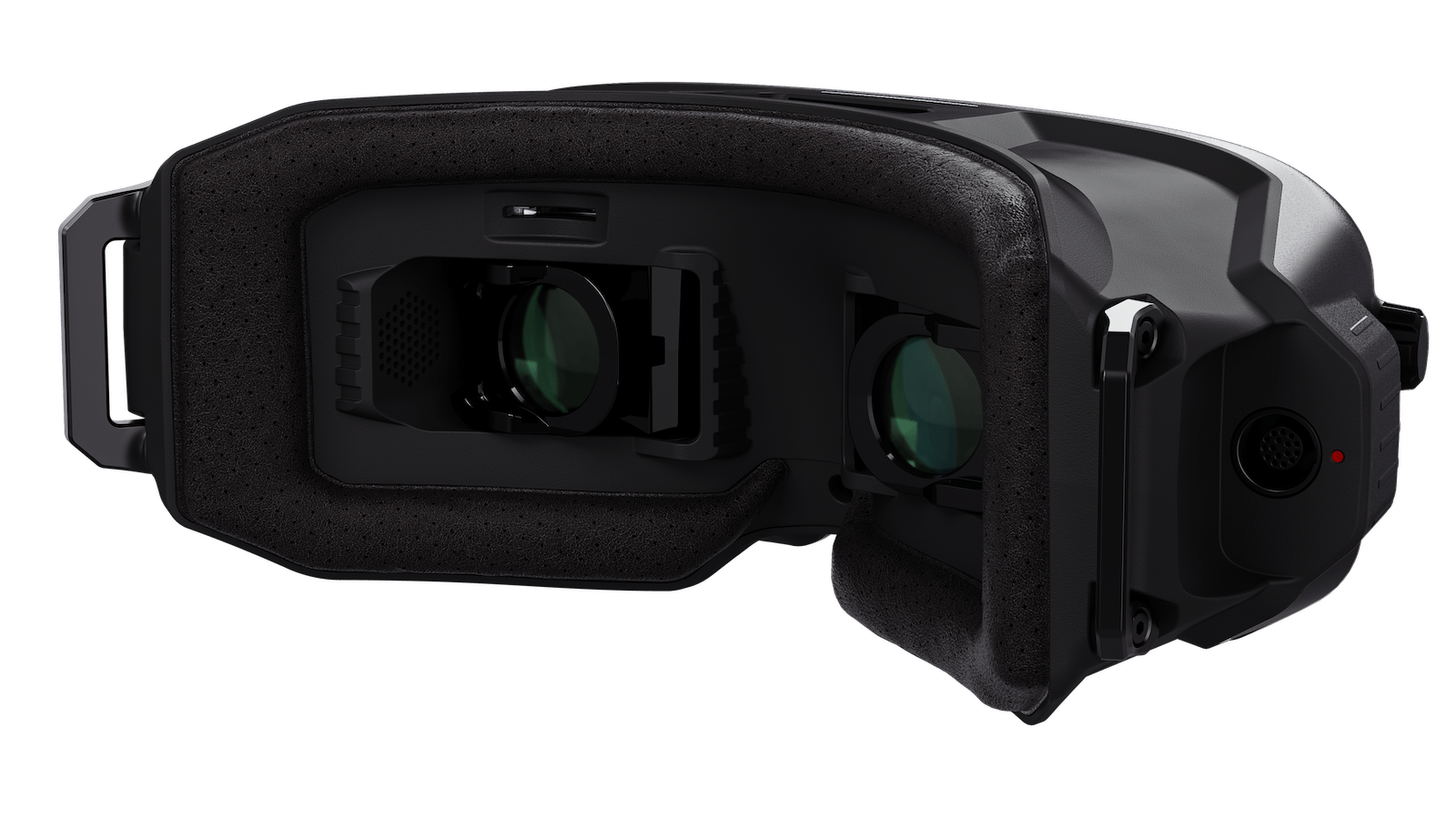

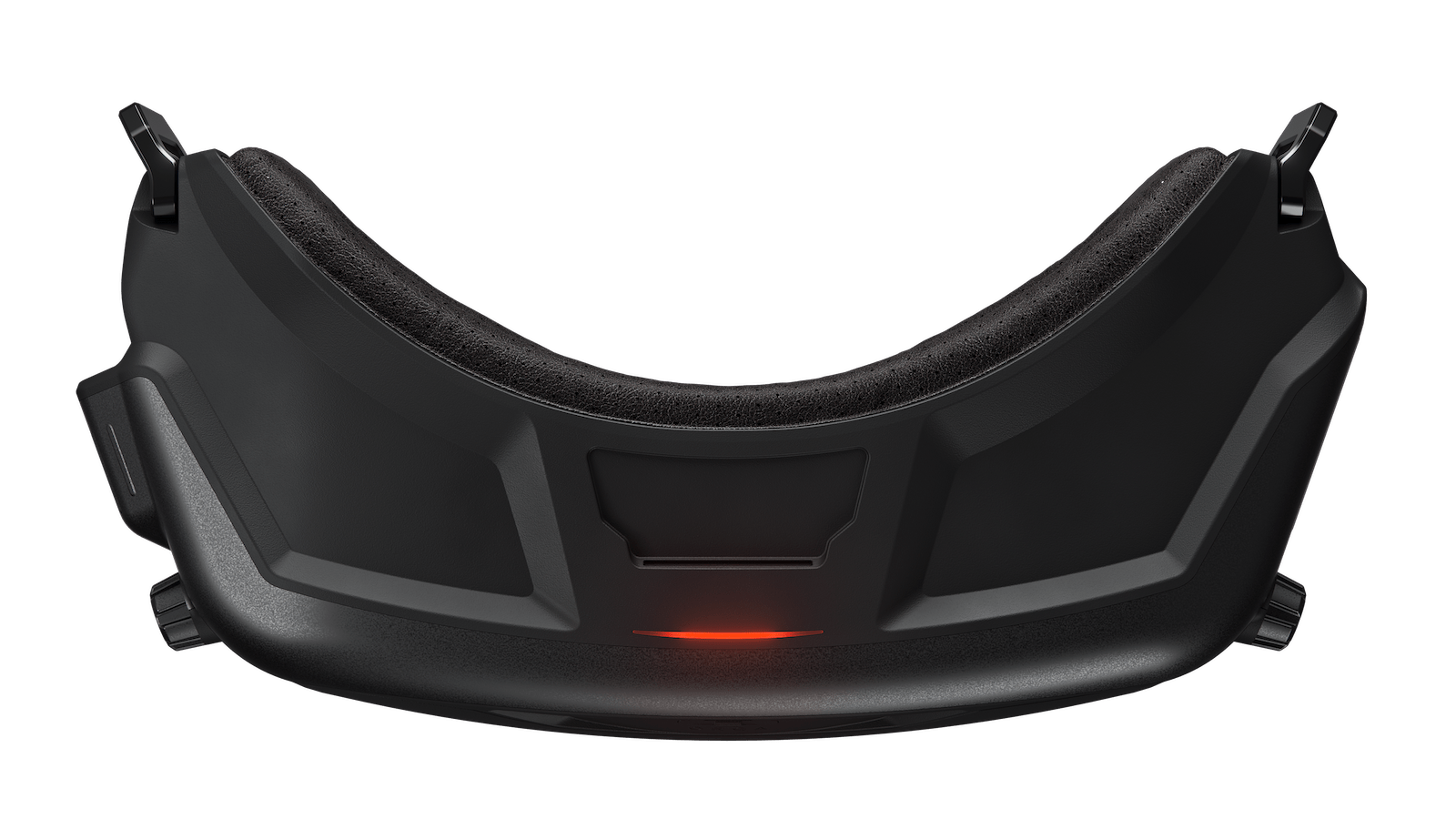

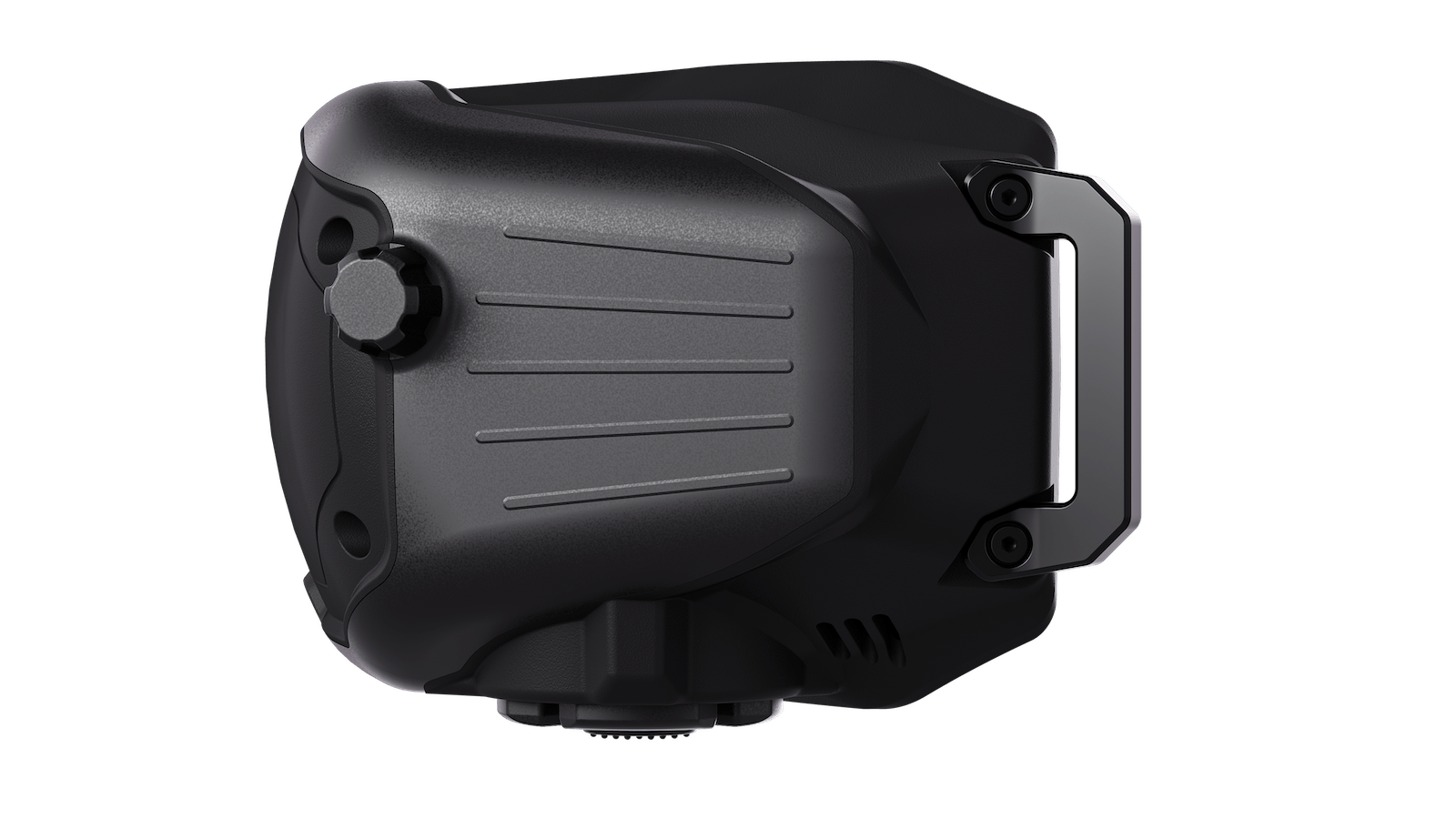

FPV.Pro

Engineered for the professional operator. The FPV.Pro features a rugged, IP53-rated design, simplified glove-operable controls, and a single Lemo connector for flawless connection. Designed and made in the EU, it's built for high-stakes missions.

get more info

DISPLAY

1280 x 960 Pixels

FIELD OF VIEW

37° Diagonal

ASPECT RATIO

4:3 Native, 16:9 (720p) support

IPD RANGE

56-74mm

FOCUS ADJUST

-4D to +4D

POWER INPUT

6-25V DC (2S-6S Li-Ion)

CONNECTIVITY

Single Multipole Lemo (Analog + HDMI), HDMI In, Composite In, Audio Out, Mic In

DVR

1280x960 @ 50/60fps, H.264 MP4 with upscaling

CONSTRUCTION

Ruggedized, IP53 water-resistant

DIMENSIONS

177 x 107 x 72mm

WEIGHT

256g

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

DISPLAY

1280 x 960 Pixels

FIELD OF VIEW

37° Diagonal

ASPECT RATIO

4:3 Native, 16:9 (720p) support

IPD RANGE

56-74mm

FOCUS ADJUST

-4D to +4D

POWER INPUT

6-25V DC (2S-6S Li-Ion)

CONNECTIVITY

Single Multipole Lemo (Analog + HDMI), HDMI In, Composite In, Audio Out, Mic In

DVR

1280x960 @ 50/60fps, H.264 MP4 with upscaling

CONSTRUCTION

Ruggedized, IP53 water-resistant

DIMENSIONS

177 x 107 x 72mm

WEIGHT

256g

COMPLIANCE

NDAA compliant, designed & manufactured in the EU

DISPLAY

1280 x 960 Pixels

FIELD OF VIEW

37° Diagonal

ASPECT RATIO

4:3 Native, 16:9 (720p) support

IPD RANGE

56-74mm

FOCUS ADJUST

-4D to +4D

POWER INPUT

6-25V DC (2S-6S Li-Ion)

CONNECTIVITY

Single Multipole Lemo (Analog + HDMI), HDMI In, Composite In, Audio Out, Mic In

DVR

1280x960 @ 50/60fps, H.264 MP4 with upscaling

CONSTRUCTION

Ruggedized, IP53 water-resistant

DIMENSIONS

177 x 107 x 72mm

WEIGHT

256g

COMPLIANCE

NDAA compliant, designed & manufactured in the EU
