Lap Rf

Timing perfected

The LapRF 8-Way is a premium RF race timing system designed to deliver unparalleled performance for 1-8 pilots. It detects drones via their 5.8GHz transmitters as they pass through the start/finish gate, ensuring flawless and precise race timing.

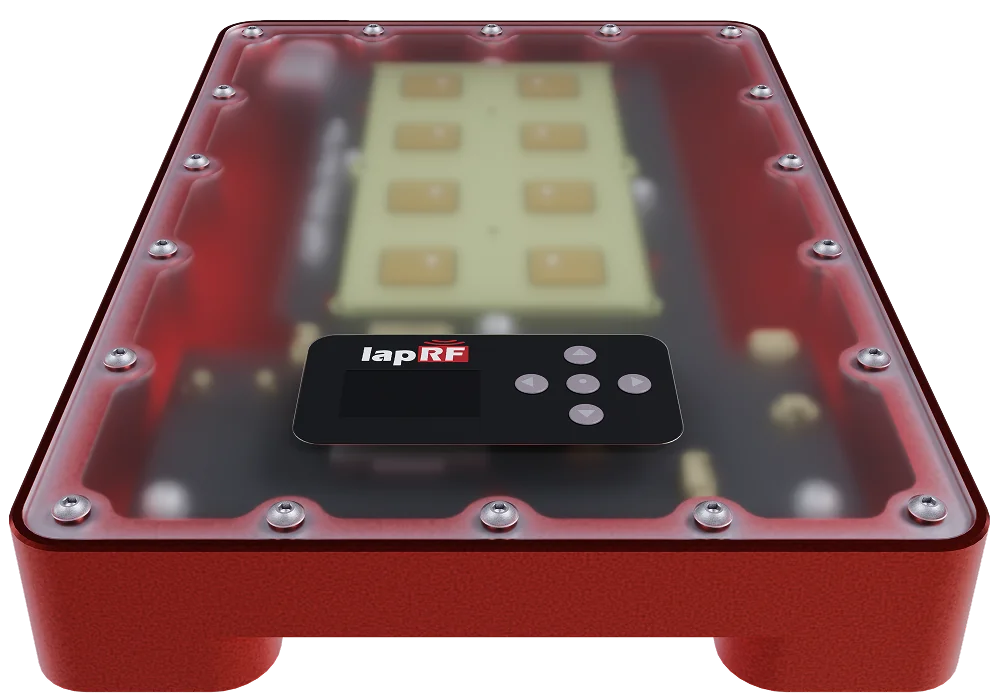

Drone Detection System Product

Race-Proven Excellence

Trusted in major events like the 2017 MultiGP International Open and USA Championships, the LapRF 8-Way is relied upon by race director Joe Scully for global competitions. When accuracy and reliability matter, this system delivers.

Representation of Race Timing Precision

Precision Without compromise

Engineered for high-stakes competition, the LapRF 8-Way delivers clean signal detection, real-time responsiveness, and stable video - so pilots stay focused on flying, not on failure. It’s the timing system that keeps up when every millisecond counts.

weight

1.59 KG

dimensions

220 mm (L) × 160 mm (W) × 30 mm (H)

power

DC input: 10–20 V

(3S–4S LiPo or equivalent DC power supply)

Power Over Ethernet (PoE) 802.3at

antenna Type

Custom RHCP / LHCP / Linear

Supported Pilots

1 to 8 pilots with maximum precision

Up to 16 pilots with 50% precision

Connectivity Ports

RJ-45 Ethernet (on flying lead)

Wired USB (internal access)

upc

840630182161

Supported Channels

All common and select rare frequencies

Analog

Digital 5.8GHz

License

Perpetual license – no install required, no time limits, no remote access dependencies

Video Format Compatibility

Analog (4:3 / 16:9 switchable)

Digital 5.8 GHz

PC Software Compatibility

Livetime FPV

user interface

Easy IP address configuration

Integrated OLED with button-based UI

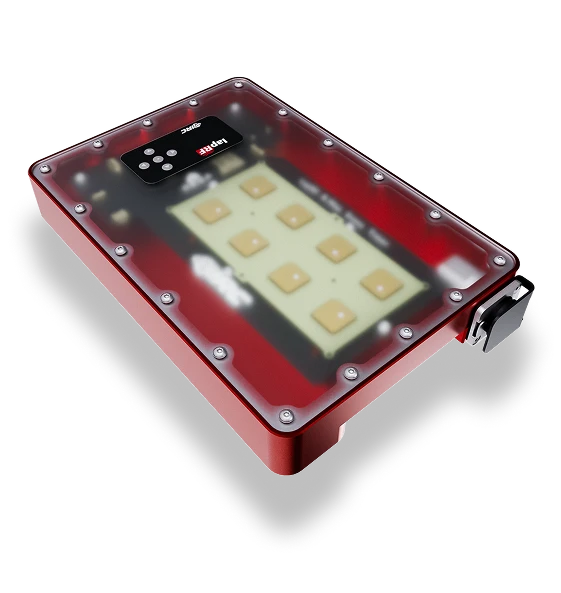

Side Top View of the LapRF

No Transponders Required

Skip the hassle of RFID or infrared. LapRF detects drones via 5.8GHz video transmitters - just place it at the gate and start racing.

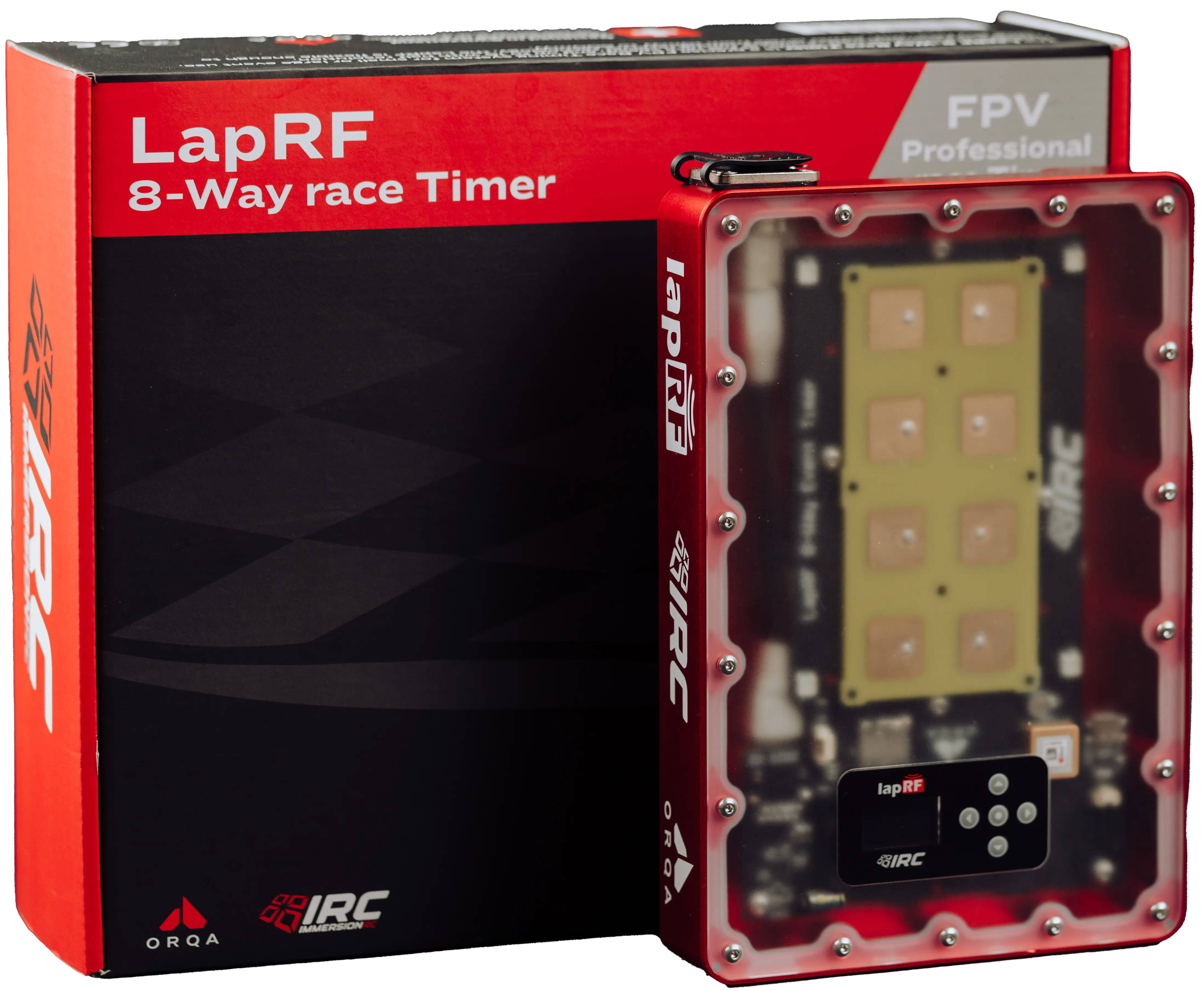

The Item Displayed with its Packaging Box

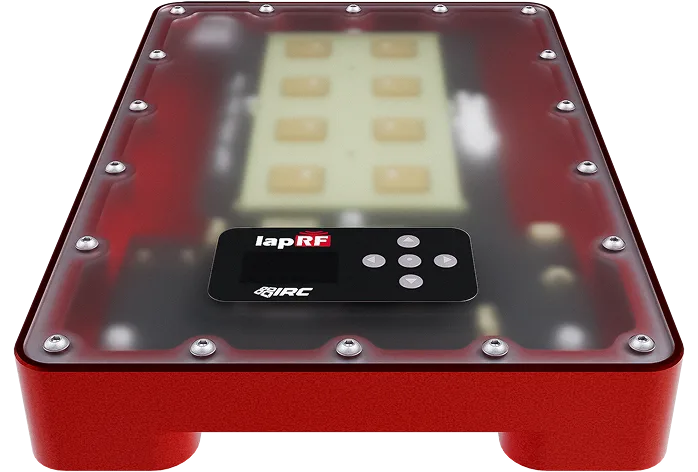

Close-Up View of the Device

Advanced Timing & Detection

Orqa’s custom receiver adapts to power levels and filters interference. Gate-shaped antennas offer accurate detection across RHCP, LHCP, and linear polarization.

Seamless Integration & Resilience

With Ethernet connectivity, IP67 waterproofing, and passive cooling, LapRF is built for easy integration, harsh conditions, and high performance.

LiveTime Support

Compatible with LiveTime via USB/Ethernet, LapRF 8-Way features auto-calibration and a spectrum analyzer.

Lap after lap,flawless timing.
